探照灯系列
SEARCHLIGHT SERIES

适用范围Application

适用于船舶夜航、救生、警戒等远距离照明和目标搜索。

TZ5苏伊士运河探照灯:适用于船舶在苏伊士运河及狭窄航道、夜航、和对水面障碍物等进行搜索照明用。

It is applicable to remote ilumination for ship night navigation, lifesaving, warning, etc, and target searching.

TZ5 suez canal searchlight:applied to ilumination ships fopass through the suez canal and the narrow sea-route when night navigation can search and iluminate the obstacle on the surface.

产品特点Characteristic

1、内部装有球面钢化玻璃反光镜和焦距调节装置，能够上下、前后灵活调节焦距，具有发光强度高、照明距离远的特点。

2、TZ1钢质外壳，底座.上装有滚珠板，并配有升降装置，可以手动控制灯体水平旋转180° ，仰俯60° , DC110V供电时，配电器箱，订货时请注明。

3、TZ1-A为不锈钢质外壳，底座内部装有微型电机，能够通过控制器操纵灯体水平旋转180°，仰俯60°

4、TZ5苏伊士运河探照灯:双灯泡结构设计，内装转换开关，可在未断电的情况下进行灯泡间的切换，两个半球形反光镜，可在土5°的水平范围内张合来调节反光效果;灯筒下面设有安全排气阀，可保证灯筒内外气压平衡;灯具可仰俯60°，水平旋转180°调节;平行的光束，射程远;符合《钢质海船入级规范》和《苏伊士运河航行规则》要求.

1.The searchlight is ftted with sphere toughened-glass reflector and focus adjustment device, with focus adjustable flexibly all round,characterized in high intensity and long range of ilumination.

2.TZ1 has a steel shell, with ball plate mounted on base and equipped with elevating gear for manual control to have lamp body rotate 180° horizontally and bend 60° . It is equipped with electric apparatus box in case of DC1 10V power supply. Please note in the purchase order.

3.TZ1-A has a stainless steel shell, with a micro motor installed inside the base. The lamp body can rotate 180° horizontally and bend 60° by controller.

4.TZ5 suez canal searchlight is designed for two bulbs, with switch inside for switching between two bulbs when the current is switched on. The two hemisphere reflectors are used to control the effect of reflection within土5° horizontally. There is a safety vent-valve at the bottom of lamp canister. The lamp can bend 60° and rotate 180° horizontally. The parallel light beam is of long range of ilumination as required by grade entry norms for steel ships and suez canal navigation rules.

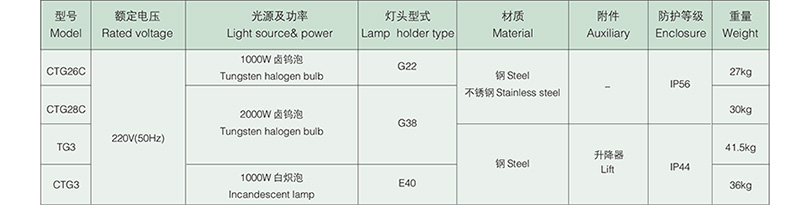

技术参数Technical Parameter

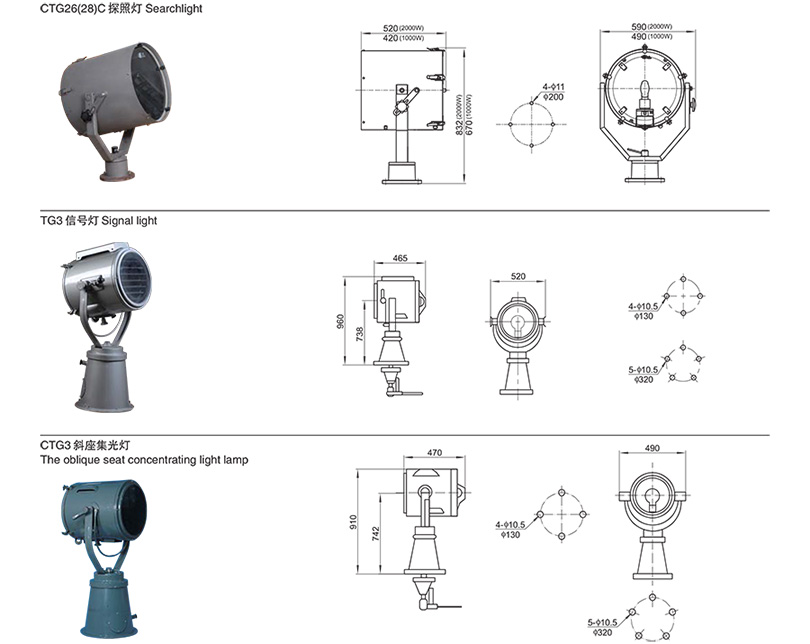

产品展示
