直升机助降灯
HELICOPTER LANDING-AID LIGHT

ZJD1 平台边界灯 PLATFORM EDGE LIGHT

该灯具装在起降平台边界上,法兰式安装,为直升机驾驶员提供起降平台边界的灯光标志。不锈钢外壳,白色玻璃灯罩(或订货方同意的其他颜色玻璃灯罩)。防护等级IP56。

It is mounted on the edge of elevating platform by use of flange to provide light sign for helicopter pilot. It has a stainless steel casing and white glass cover as required by purchaser. The protection grade is IP56.

ZJD2 前极限位置灯 NOSE LIMITED LINE LIGHT

该灯具装在起降平台前极限位置上,法兰式安装,为直升机驾驶员提供起降平台前极限位置的灯光标志。不锈钢外壳,红色玻璃灯罩(或订货方同意的其他颜色玻璃灯罩)。防护等级IP56。

It is mounted on the front end of elevating platform by use of flange to provide light sign for helicopter pilot. It has a stainless steel casing and red glass cover as required by purchaser. The protection grade is IP56.

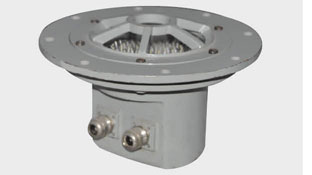

ZJD1 平台边界灯 Platform Edge Light
直升机助降灯
ZJD1 平台边界灯

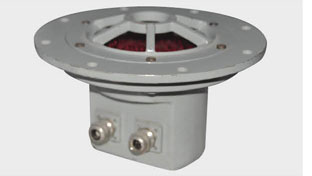

ZJD2 前极限位置灯 Nose Limited Line Light
ZJD2 前极限位置灯

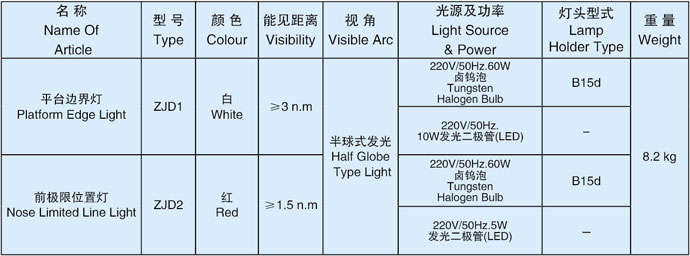

技术参数 DATA
直升机助降灯技术参数
