电气号灯
ELECTRICAL SIGNAL LIGHT

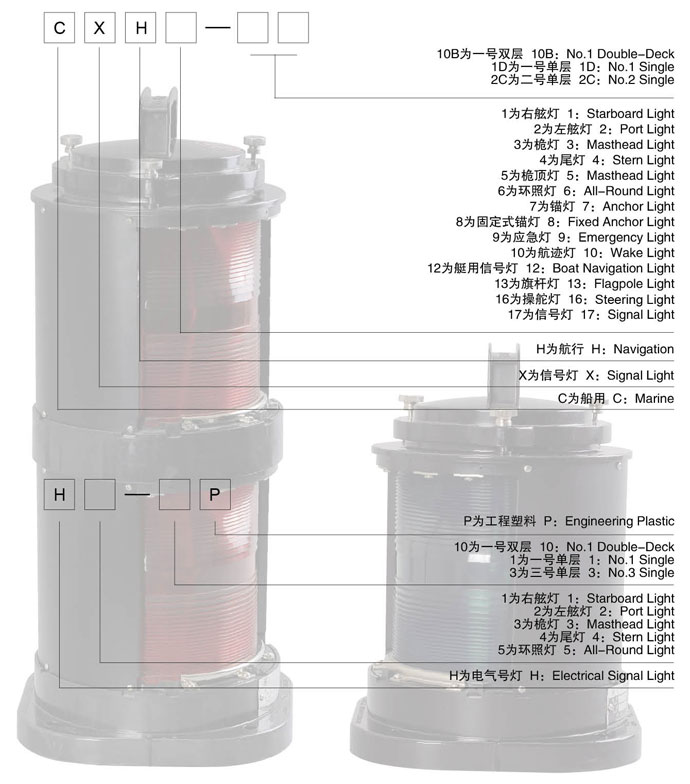

电气号灯型号及性能说明
Models And Function Explanation Of Electrlcal Signal Lights

电气号灯型号及性能说明

H-1P 船用全塑电气号灯
H-1P PLASTIC MARINE ELECTRICAL SIGNAL LIGHT

该系列号灯适用于长度为50米或50米以上船舶作夜航灯光信号,符合《1972年国际海上避碰规则》,并经中国船级社产品型式认可。

This series of Signal Light is designed for use on ships 50 or over 50 meters in length. It is used for navigation signal at night. Its behavior is in agreement with 1972 International Marine Regulation for Prevention of Collision. The types and styles have been ratified by THE CHINA CLASSIFICATION SOCIETY.

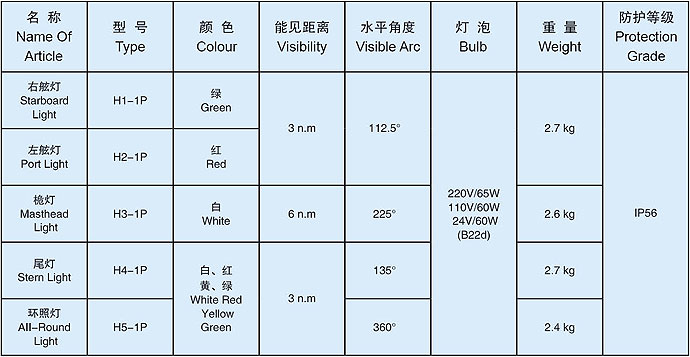

技术参数 DATA
船用全塑电气号灯技术参数

设有自动漏水孔。壳体、灯罩选用聚碳酸脂。

Note: This Light is designed with drain holes for water to leak out automatically. The casing and lamp cover ane made of polycarbonate.

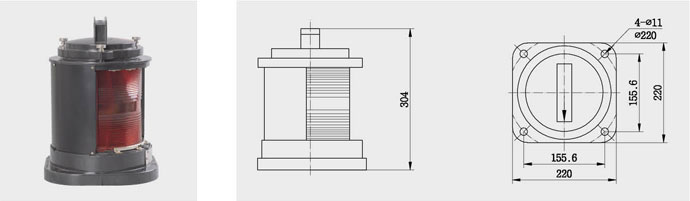

H1-1P 右舷灯 Starboard Light
H1-1P 右舷灯

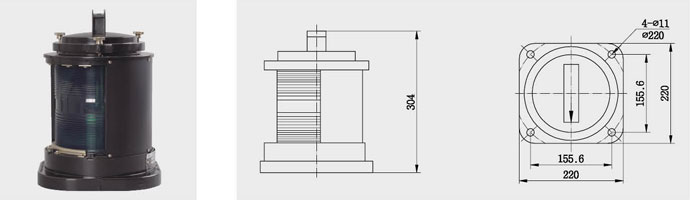

H2-1P 左舷灯 Port Light
H2-1P 左舷灯

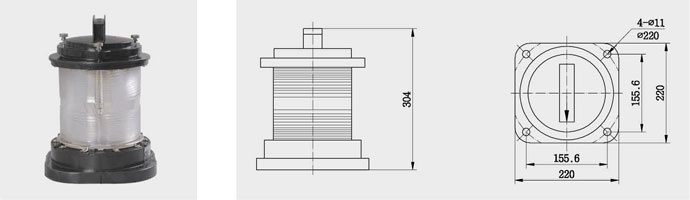

H3-1P 桅灯 Masthead Light
H3-1P 桅灯
H4-1P 尾灯 Stern Light
H4-1P 尾灯

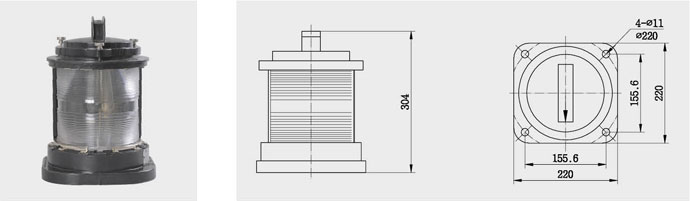

H5-1P 环照灯 All-Round Light
H5-1P 环照灯
